The latest software version v13.1

What’s new in RISKCURVES v13.1

Two updates in this release — a new ignition source modelling workflow for more realistic flammable cloud risk assessments, and extended buried gas pipeline rupture capabilities.

Ignition source modelling

Previously, RISKCURVES assumed that a flammable cloud would always ignite. This is conservative by design, but can overestimate risk in areas where ignition sources are sparse or absent.

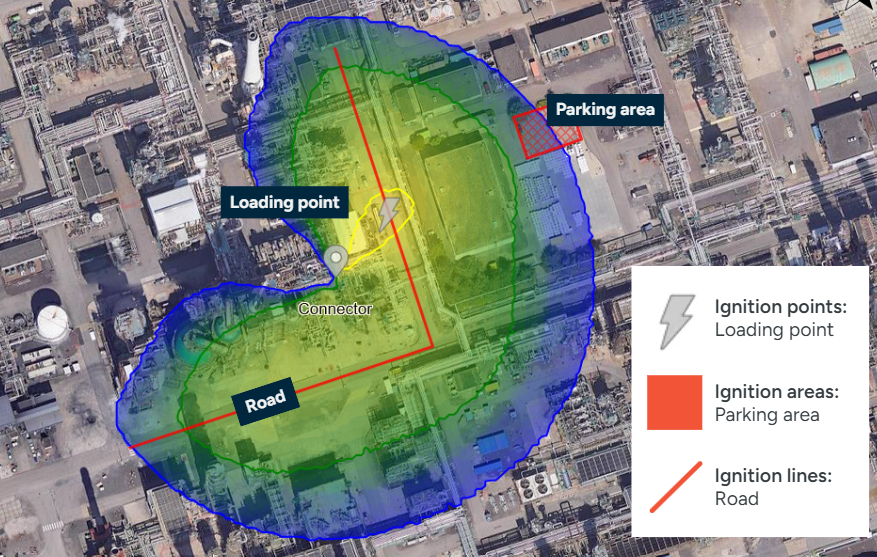

Users can now define ignition source locations directly on the map. The software will only predict ignition and the resulting flash fire or explosion when the flammable cloud is modelled to actually reach one of those sources.

Three types of ignition source can be placed on the map:

• Reduces unnecessary conservatism in flash fire and explosion frequency calculations.

• Increasingly required in QRAs across multiple industries and regions.

For detailed information, see the technical report available for all RISKCURVES users in our download centre.

Buried gas long pipeline modelling

Crater formation modelling for underground pipeline ruptures was introduced in an earlier version for pressurised liquefied gases. In v13.1, this capability is extended to gas long pipeline model, covering a broader range of transmission scenarios.

• Relevant for natural gas transmission and gas pipe transport applications (e.g., hydrogen, LPG vapour, CO₂, ammonia, etc).

• Supports consequence modelling for pipeline operators and transmission infrastructure risk studies.

• Relevant for land-use planning assessments near buried gas infrastructure.

This enhancement supports pipeline operators, engineering consultants, and risk analysts working on buried pipeline consequence modelling and infrastructure risk assessments. For detailed information, see the model documentation and validation report available for all RISKCURVES users in our download centre.

New: German language support

Work in your preferred language with expanded multilingual support. EFFECTS and RISKCURVES are now available in German in addition to English, Spanish, and Chinese. This enables German-speaking users to navigate and use the software more efficiently in their native language.

How to access the update

Existing users can download the new software update and model documentation at a link attached to the button below.

If you need any assistance, our customer support team is here to help all RISKCURVES users.
